Normally White NT116WHM-N21 11.6 inch with 256.125(H)×144(V) mm Active Area Luminance 220 cd/m² (Typ.)

Normally White NT116WHM-N21 11.6 inch with 256.125(H)×144(V) mm Active Area Luminance 220 cd/m² (Typ.)
Normally White NT116WHM-N21 11.6 inch with 256.125(H)×144(V) mm Active Area Luminance 220 cd/m² (Typ.) Normally White NT116WHM-N21 11.6 inch with 256.125(H)×144(V) mm Active Area Luminance 220 cd/m² (Typ.)

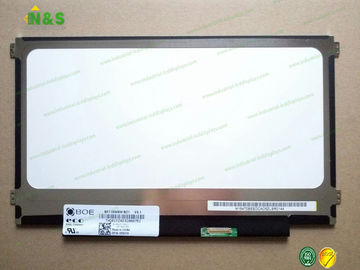

Image Grand :  Normally White NT116WHM-N21 11.6 inch with 256.125(H)×144(V) mm Active Area Luminance 220 cd/m² (Typ.)

Détails sur le produit:
Lieu d'origine: Corée
Nom de marque: BOE
Certification: ISO9001
Numéro de modèle: NT116WHM-N21
Conditions de paiement et expédition:
Quantité de commande min: 1
Détails d'emballage: Sac antistatique, sac à bulles, boîte de mousse et boîte de carton.
Délai de livraison: 2 ou 3 jours ouvrables après confirmation de paiement
Conditions de paiement: T/T, Western Union, Paypal
Capacité d'approvisionnement: 100 PCS/JOURS

Normally White NT116WHM-N21 11.6 inch with 256.125(H)×144(V) mm Active Area Luminance 220 cd/m² (Typ.)

description de
Taille de panneau: 11,6 pouces Luminance: ² de 220 cd/m (type.)
Direction de vue: 6 heures Rapport de contraste: 500:1 (type.) (le TM)
Taux d'armature: 60hz
Surligner:

industrial touch screen display

,

industrial lcd panel

Normally White NT116WHM-N21 11.6 inch with 256.125(H)×144(V) mm Active Area Luminance 220 cd/m² (Typ.)



NT116WHM-N21 Basic Information

Panel Model NT116WHM-N21
Panel Brand BOE
Descrition a-Si TFT-LCD ,11.6 inch, 1366×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks for Dell



NT116WHM-N21 Mechanical Features

Dot Resolution 1366(RGB)×768 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 135 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0625×0.1875 mm (H×V)
Pixel Pitch 0.1875×0.1875 mm (H×V)
Weight 210g (Max.)
Surface Hard coating (7H)
Active Area 256.125×144 mm (H×V)
Outline Dimension 268×168 mm (H×V)
Outline Depth 3.0 (Max.) mm
Shape Style Slim (PCBA Flat, Depth ≤3.2mm)
Holes & Brackets Face mounting holes (8 pcs) on left, right slugs
Landscape or Portrait Landscape type
Touch Panel Without



NT116WHM-N21 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 220 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 12 (Typ.)(Tr+Td)
Viewing Angle 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.28/1.67 (Max.)(5/13 points)
Sunlight Readable N



What’s our advantage compared with other suppliers?

(1). Before shipment, we will test every LCD Screen and ensure the quality.

(2). we provide high quality lcd panels for customers all over the world.

(3) .We have DBS, ISO9001 Certifications for our Panels.

(4) .Excellent service on before-sale, on-sale and after-sale.



Packaging & Shipping for Our LCD panel

1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.

2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.

Other shipping terms can also be arranged according to specific requirements.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
TT080WXG-N11 BOE 8.0" 800×1280
TV079X0Q-N50 BOE 7.9" 768×1024
TV079X0S-NA0 BOE 7.9" 768×1024
BA070WV2-100 BOE 7.0" 800×480
TV070WSG-N80 BOE 7.0" 600×1024
TT070WSQ-N80 BOE 7.0" 600×1024
BV055FHM-N00 BOE 5.5" 1080×1920
BA035HV3-800 BOE 3.5" 320×480
BF050HDQ-100 BOE 5.0" 720×1280
BT045FWQ-N80 BOE 4.5" 480×854
BS050HDE-N41-6Q00 BOE 5.0" 720×1280
BV050HDE-N44 BOE 5.0" 720×1280
