Normally Black CLAA070WP03XG CPT Industrial LCD Displays with 94.2×150.72 mm Active Area Frequency 60Hz

Normally Black CLAA070WP03XG CPT Industrial LCD Displays with 94.2×150.72 mm Active Area Frequency 60Hz
Normally Black CLAA070WP03XG CPT Industrial LCD Displays with 94.2×150.72 mm Active Area Frequency 60Hz

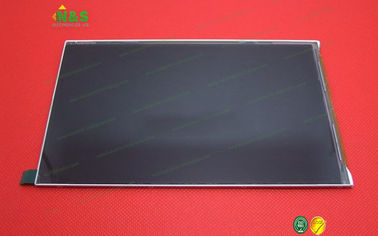

Image Grand :  Normally Black CLAA070WP03XG CPT Industrial LCD Displays with 94.2×150.72 mm Active Area Frequency 60Hz

Détails sur le produit:
Lieu d'origine: Corée
Nom de marque: CPT
Certification: ISO9001
Numéro de modèle: CLAA070WP03XG
Conditions de paiement et expédition:
Quantité de commande min: 1 morceau
Détails d'emballage: Sac antistatique, sac à bulles, boîte de mousse et boîte de carton.
Délai de livraison: 1-3 jours ouvrables
Conditions de paiement: T / T, Western Union, MoneyGram
Capacité d'approvisionnement: 500pcs/day

Normally Black CLAA070WP03XG CPT Industrial LCD Displays with 94.2×150.72 mm Active Area Frequency 60Hz

description de
Taille de panneau: 7,0 pouces Résolution: 800×1280
Secteur actif: 94.2×150.72 millimètre Rapport de contraste: 700:1 (type.)
Tension d'entrée: 3.3V (type.)
Surligner:

industrial lcd screen

,

industrial lcd panel

Normally Black CLAA070WP03XG CPT Industrial LCD Displays with 94.2×150.72 mm Active Area Frequency 60Hz



CLAA070WP03XG Basic Information

Panel Model CLAA070WP03XG
Panel Brand CPT
Descrition a-Si TFT-LCD ,7.0 inch, 800×1280
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 65 °C
Remarks for Nexus 7



CLAA070WP03XG Mechanical Features

Dot Resolution 800(RGB)×1280 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 215 PPI
Aspect Ratio 10:16 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.03925×0.11775 mm (H×V)
Pixel Pitch 0.11775×0.11775 mm (H×V)
Weight 101g (Max.)
Surface Glare (Haze 0%), Hard coating (3H)
Active Area 94.2×150.72 mm (H×V)
Outline Dimension 104.32×161.67 mm (H×V)
Outline Depth 2.3/4.05 (Typ./Max.) mm
Holes & Brackets Without
Landscape or Portrait Portrait type
Touch Panel Without



CLAA070WP03XG Optical Features

Display Mode HFFS, Normally Black, Transmissive
Brightness 450 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 60% NTSC (CIE1931)
Response Time 30 (Typ.)(Tr+Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.310; Wy:0.330
White Variation 1.25/1.39 (Typ./Max.)(9 points)
Sunlight Readable N


Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

  1. AUO LCD Screen
  2. Samsung LCD Display
  3. LG LCD Screen replacements
  4. Sharp LCD panels &Chimei LCD Parts.
  5. Innolux LCD Modules & BOE LCD Screen.

We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.

Here comes our other LCD panels stock for your easy reference:



Panel Model Brand Size Resolution
CLAN070NQ06 CPT 7.0" 1024×600
CLAG050LD01 CPT 5.0" 480×854
CLAN060LB41 2XC CPT 6.0" 540×960
CLAD015GA01 CXA CPT 1.5" 480×240
CLAN101FP05 XG CPT 10.1" 1920×1200
CLAG101WH11 LXA CPT 10.1" 1280×800
CLAF055WB42 TXX CPT 5.5" 720×1280
CLAN089WA02 XN CPT 8.9" 800×1280
CLAF050WH41 CPT 5.0" 720×1280
CLAN070NJ01 CW CPT 7.0" 1024×600
CLAG070NQ01 CPT 7.0" 1024×600
