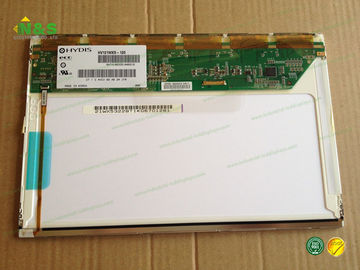

Normally Black 12.1 inch HV121WX5-120 HYDIS with 261.12×163.2 mm Active Area Contrast Ratio 500:1 (Typ.)
HV121WX5-120 Basic Information
| Panel Model |
HV121WX5-120 |
| Panel Brand |
HYDIS |
| Descrition |
a-Si TFT-LCD ,12.1 inch, 1280×800 |
| Panel Type |
a-Si TFT-LCD |
| Operating Temperature |
0 ~ 50 °C |
| Storage Temperature |
-20 ~ 60 °C |
HV121WX5-120 Mechanical Features
| Dot Resolution |
1280(RGB)×800 (WXGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
124 PPI |
| Aspect Ratio |
16:10 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.068×0.204 mm (H×V) |
| Pixel Pitch |
0.204×0.204 mm (H×V) |
| Weight |
256g (Typ.) |
| Active Area |
261.12×163.2 mm (H×V) |
| Bezel Area |
265.1×167.2 mm (H×V) |
| Outline Dimension |
276.8×180 mm (H×V) |
| Outline Depth |
6.5±0.3 mm |
| Holes & Brackets |
Side mounting holes (9-M2) on left, right, up bezel |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
HV121WX5-120 Optical Features
| Display Mode |
AFFS, Normally Black, Transmissive |
| Brightness |
220 cd/m² (Typ.) |
| Contrast Ratio |
500 : 1 (Typ.) (Transmissive) |
| Display Color |
262K (6-bit) |
| Response Time |
30 (Typ.)(Tr+Td) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction |
Symmetry |
| White color Chromaticity |
Wx:0.313; Wy:0.329 |
| White Variation |
1.25/1.67 (Max.)(5/13 points) |
| Sunlight Readable |
N |
