12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency 60Hz

Certificat
Chine N&S ELECTRONIC CO., LIMITED certifications
Chine N&S ELECTRONIC CO., LIMITED certifications
Examens de client
Nous sommes revenus complètement des excellents souvenirs, N&S est une organisation très bonne. Vraiment expert pour des affichages à cristaux liquides.

—— ANDY

Nous voudrions féliciter le service que nous avons reçu de cette société qui a sans faute organisé notre canalisation d'alimentation de panneau d'affichage à cristaux liquides.

—— M.H. Thatcher

Si je prévois un autre ordre de panneau d'affichage à cristaux liquides je n'hésiterai pas à vous contacter encore.

—— Alejandro

Je suis en ligne une discussion en ligne

12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency 60Hz

12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency	 60Hz
12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency	 60Hz

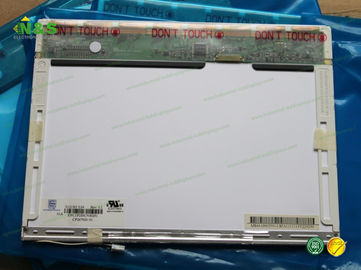

Image Grand :  12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency 60Hz

Détails sur le produit:
Lieu d'origine: Corée
Nom de marque: CMO
Certification: ISO9001
Numéro de modèle: N121X5-L04
Conditions de paiement et expédition:
Quantité de commande min: 1
Détails d'emballage: Sac antistatique, sac à bulles, boîte de mousse et boîte de carton.
Délai de livraison: 1-3 jours ouvrables
Conditions de paiement: T/T, Western Union, MoneyGram, T/T
Capacité d'approvisionnement: 500pcs/day

12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency 60Hz

description de
Type de panneau: Un-SI TFT LCD Taille de panneau: 12,1 pouces
Résolution: 1024×768 contour: 261×198×5 millimètre
Rapport de contraste: 500:1 (type.) fréquence: 60hz
Surligner:

industrial touch screen display

,

industrial lcd panel

12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency 60Hz



Our Promise for our LCD Panels:

You will get reply within 24 Hours and:

ΠYear warranty

ΠDay shipping

‹ Return



After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare



Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
H497DAN02.0 AUO 5.0" 1080×1920
H495TAN01.1 AUO 5.0" 720×1280
LK315T3HC1K SHARP 31.5" 1366×768
ST2751A01-6 CSOT 27.5" 1366×768
H496TAN01.0 AUO 5.0" 720×1280
H545QAN01.0 AUO 5.5" 1440×2560
TM050JYSP01 Tianma 5.0" 720×1280
LH500M01-SH02 LG Display 5.0" 540×960
LH500WX5-SH01 LG Display 5.0" 720×1280
LH500WX9-SH01 LG Display 5.0" 720×1280
P089DCZ-3A1 Innolux 8.9" 800×1280
BS050HDE-N41-6Q00 BOE 5.0" 720×1280

Pls contact to us for more stock information: salespm@nselectronic.com.hk



N121X5-L04 Basic Information

Panel Model N121X5-L04
Panel Brand CMO
Descrition a-Si TFT-LCD ,12.1 inch, 1024×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C



N121X5-L04 Mechanical Features

Dot Resolution 1024(RGB)×768 (XGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 105 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.080×0.240 mm (H×V)
Pixel Pitch 0.240×0.240 mm (H×V)
Weight 240g (Typ.)
Surface Antiglare (Haze 25%), Hard coating (3H)
Active Area 245.76×184.32 mm (H×V)
Bezel Area 250.5×188.9 mm (H×V)
Outline Dimension 261×198 mm (H×V)
Outline Depth 4.7/5.0 (Typ./Max.) mm
Holes & Brackets Side mounting holes (6-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without



N121X5-L04 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 175 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 5/11 (Typ.)(Tr/Td)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25 (Max.)(5 points)
Sunlight Readable N
