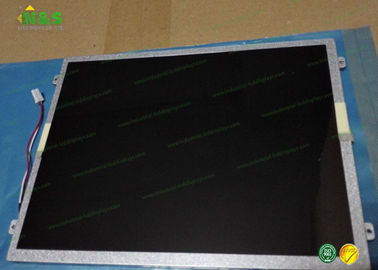

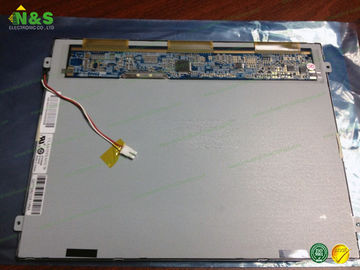

CLAA104XA01CW TFT LCD Module 10.4 inch resolution 1024×768 Surface Antiglare, Hard coating (3H)
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
CLAA104XA01CW Basic Information
| Panel Model |
CLAA104XA01CW |
| Panel Brand |
CPT |
| Descrition |
a-Si TFT-LCD ,10.4 inch, 1024×768 |
| Panel Type |
a-Si TFT-LCD |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
CLAA104XA01CW Mechanical Features
| Dot Resolution |
1024(RGB)×768 (XGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
123 PPI |
| Aspect Ratio |
4:3 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.06875×0.20625 mm (H×V) |
| Pixel Pitch |
0.20625×0.20625 mm (H×V) |
| Weight |
380g (Typ.) |
| Surface |
Antiglare, Hard coating (3H) |
| Active Area |
211.2×158.4 mm (H×V) |
| Bezel Area |
213.2×160.4 mm (H×V) |
| Outline Dimension |
236×174.3 mm (H×V) |
| Outline Depth |
7.4 (Typ.) mm |
| Holes & Brackets |
Face mounting holes (4-Φ2.5) |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
CLAA104XA01CW Optical Features
| Display Mode |
TN, Normally White, Transmissive |
| Brightness |
300 cd/m² (Typ.) |
| Contrast Ratio |
500 : 1 (Typ.) (Transmissive) |
| Display Color |
262K (6-bit) |
| Response Time |
25 (Tr+Td) |
| Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction |
6 o'clock |
| White color Chromaticity |
Wx:0.313; Wy:0.329 |
| White Variation |
1.25/1.43 (Typ./max.)(9 points) |
| Sunlight Readable |
N |
